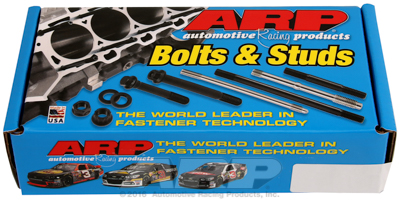

ARP Rod Bolt Kit BMW S85B50 V10 (CA625+)
ARP - Rod bolts
Reviews
Help others choose right. Be the first to write a review!
Write a reviewARP Rod Bolt Kit BMW S85B50 V10 (CA625+)
Material: CA625+
Part Number: 201-6002
Application: BMW 5.0L (S85) V10
Cap Screw without Washer - Rod Bolt Installation
[1] Please check the part-number(s) for your application
against the part-number(s) listed on the instruction sheet.
[2] Make sure there is an adequate chamfer around the bolt
hole on the connecting rod cap to clear the radius under
the head of the bolt.
[3] Lubricate the threads and the under head of the bolt with
ARP Ultra-Torque Fastener Assembly Lubricant.
[4] ARP recommends using the STRETCH METHOD when
tightening rod bolts. Following the instructions for using a
stretch gauge, Stretch the bolts to
. 0075” - .0080”
[5] If you do not have a stretch gauge, torque the bolts to:
60 ft-lbs
[6] The connecting rods should always be re-sized after new
rod bolts are installed.
[7] A log should be kept on the original non-torqued length
of each bolt. Bolts that have any permanent deformation
or have increased in non-torqued length by more than
.001 in. should be replaced.
----------------
Guides & Info
| Bilmärke | BMW |
| Engine code | S85 |
