What is AN fittings and AN hose?

There are many fuel, oil, air and water systems that are built with AN-fittings, but is it and how does it work?

Here we show in a simple and clear way which parts are available, how they are connected and mounted to different products. With this information, you learn to choose the right AN fittings and hose to assemble them correctly.

The different categories we go through are:

  1. Hose and hose ends
  2. Adapters
  3. Installation
  4. Different types of hose and hose ends




The AN system works as Lego pieces. You use the different building blocks to connect parts with each other.
Oil:
Oil cooler <-> engine
Water and oil:
Turbo <-> engine
Bränsle:
Fuel cell <-> engine
Luft: Wastegate <-> Turbo

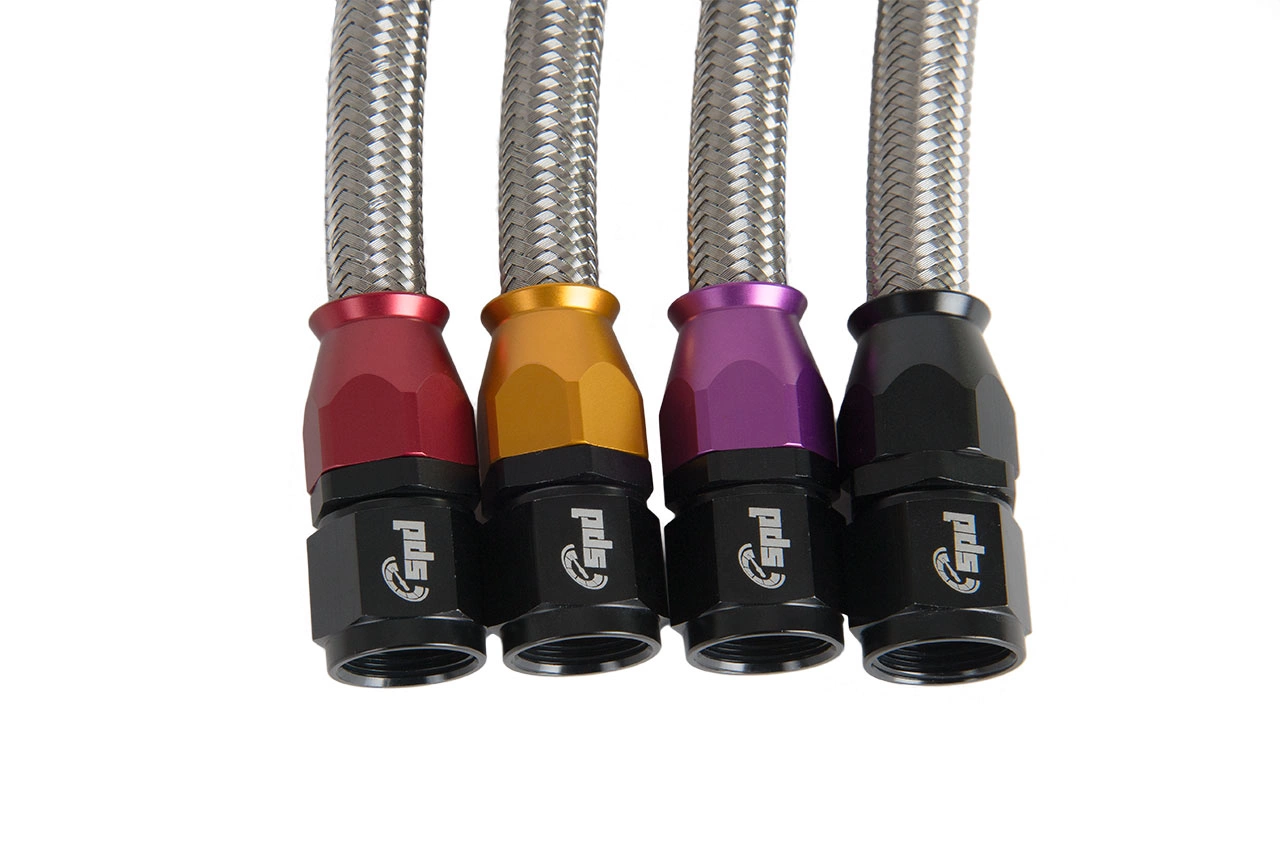

1. Hose and hose ends

AN hose is made to have hose ends on each end. These fittings are easily assembled without special tools. When fittigns are mounted on the hose, there is a UNF / AN thread at each end. Now we have assembled an AN hose.

We now use adapters to connect this AN hose to a turbo, engine, radiator, fuel pump, catch tank or anything else that needs air, water, oil or fuel.




2. Adapters

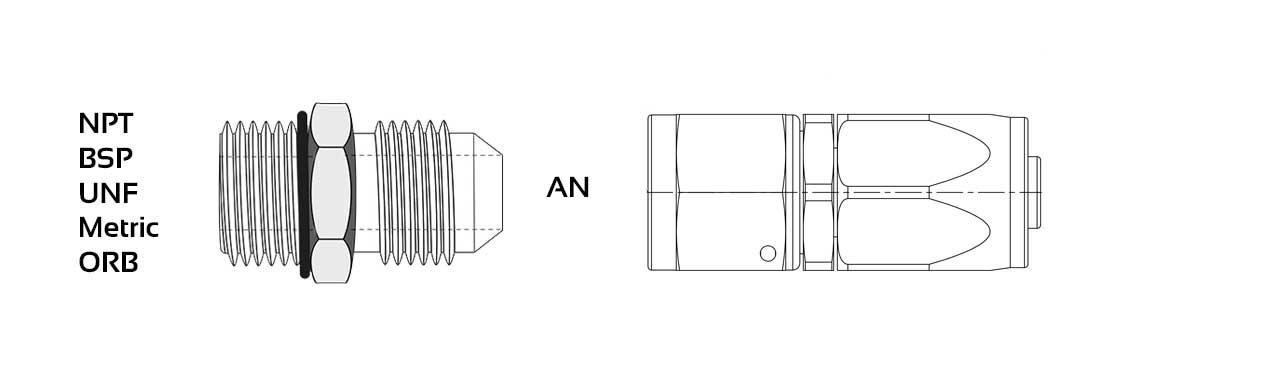

When the AN hose is assembled, you use different adapters to connect products / parts. AN-adapters has a thread at each end.
  • AN-system UNF thread with 37 degrees cone at one end to fit hose ends.
  • At the other end, select the desired thread you want to connect.



3. Installation

Example of a turbo oil line:

You want to install a hose for turbocharger oil supply that has about 5mm inner diameter.

The turbo oil inlet has 1/4" NPT thread.

Engine outlet thread is M14x1,5

Question to ask is:

  1. What media should we tranport?
    Oil
    AN hose with rubber core will be well suited.
  2. What hose size should we use?
    about 5mm
    Then a AN4 hose with 5,5mm inner diameter will work well.
  3. What hose ends should we use?
    AN4
    These hose ends will fit in each end of the hose.
  4. What adapters should we use on the turbo side?
    1/4" NPT
    Then we pick a 1/4" NPT to AN4 adapter (1/4" NPT thread in one and and AN4 thread in the other end.)
  5. What adapters should we use on the engine side?
    M14x1,5
    Then we pick a  M14x1,5 to AN4 adapter (M14x1,5 thread in one and and AN4 thread in the other end.)

The recipe for parts will be as follows:

1x AN4 hose with rubber core
2x AN4 hose ends to fit AN4 hose with rubber
1x Adapter to turbo 1/4" NPT -> AN4
1x Adapter to engine M14x1,5 -> AN4




4. Different types of hose and hose ends

Depending on the media used, different types of hose are suitable

  • Hose with rubber core for oil, water and air.
  • PTFE hose with plastic core for fuel
  • Push-On hose completely in rubber for oil, air and water (Also fuel if hose clamp must be used)
The three different types of hose also have three different types of hose ends to fit the hose.
