Toyota 2JZ Intake Manifold
Universal-2
2JZ-GTE
Reviews
Help others choose right. Be the first to write a review!
Write a reviewToyota 2JZ Intake Manifold
Toyota 2JZ-GTE Intake manifold

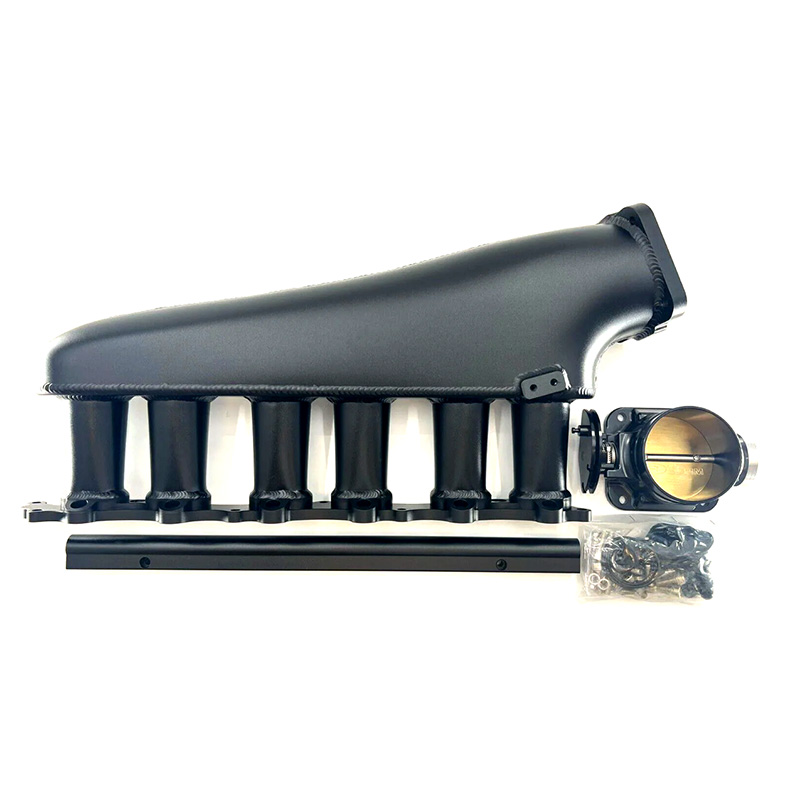

Complete kit with intake, fuel rail, throttle body and mounting accessories.
Fits the following applications:
Toyota Supra MK4 (93-02) with 2JZ-GTE
Toyota Aristo JZS147 (91-97) with 2JZ-GTE
Toyota Aristo JZS160/JZS161 (97-05) with 2JZ-GTE
Intake
Made in matt black 3mm aluminum with a high finish. Sealed with o-rings to the head and throttle body.
Idling motor (IAC) and 4 connections for vacuum placed underneath.
Fuel rail
Matt black fuel rail made of aluminium. Internal thread AN8 and supplied with adapters to AN6 and mounting brackets.
Equipped with center return.
Injector hole is 13.5mm.
Throttle body
Black billet milled throttle housing with 90mm brass trottle. Outer diameter 95mm. Intended to be used with oem throttle position sensors (TPS).
----------------
Guides & Info
| Bilmärke | Toyota |
| Engine code | 2JZ |
