Innovate DLG-1: Dual lambda gauge
One gauge, two widebands! The perfect solution for all V8 engines

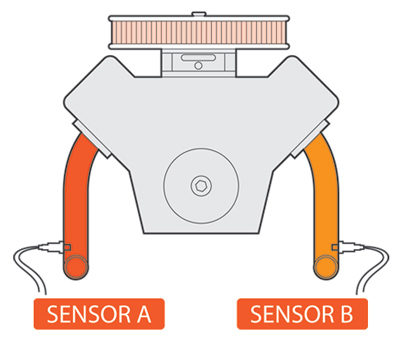

- Monitor left and right exhaust banks on one single gauge!
- Perfect for all V configured engines
- Plug & Play setup for both O2 sensors
- No PC required for additional configuration
- 52mm (2 1/16”) diameter gauge body

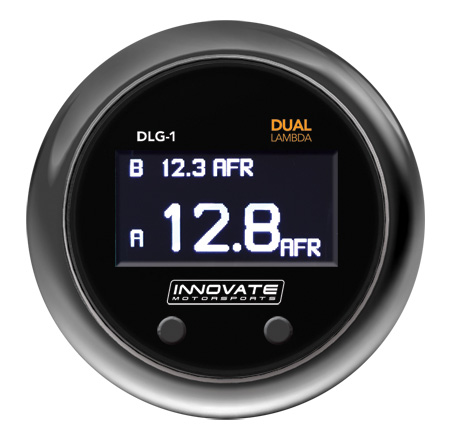

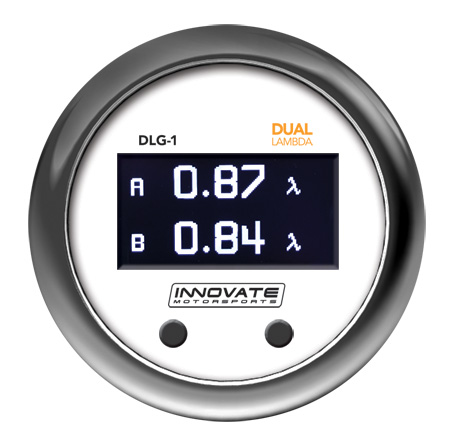

- Interchangeable faceplates and bezels: Black and silver bezel, black and white faceplates included
- User configurable OLED display (AFR or Lambda)
- Multiple ways to display data on gauge
- Patented DirectDigital™ wideband sensor control, 100% digital wideband air/fuel ratio technology!
- Wideband O2 Compatible with several fuel types (Leaded, Unleaded, Diesel, E85 & more)
- Ability to calibrate O2 sensors for maximum accuracy
- Configurable linear 0-5v analog output for wideband O² for use with piggy back or stand alone ECU’s as well as external data loggers
- Innovate MTS serial in/out (for use with other Innovate & 3rd party MTS enabled devices to add additional logging channels)
- Datalog both O2 channels using powerful LogWorks software on your PC

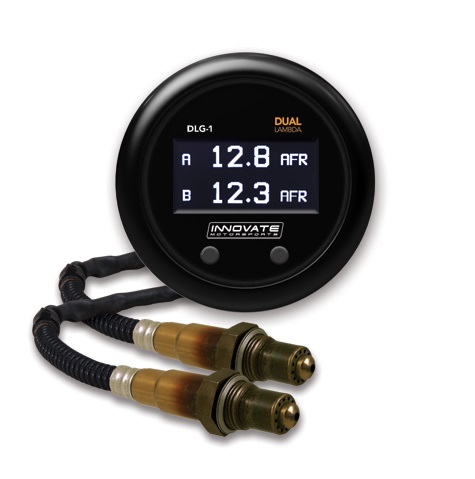

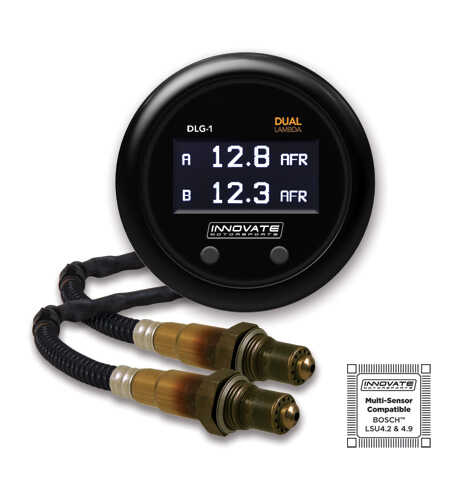

DLG-1: Dual Lambda (AFR) Gauge Kit - includes
- DLG-1 gauge
- 2x Wideband Bosch LSU4.9 O2 sensors
- 8 ft sensor cables
- LC-2 Wideband Controller
- 2x O2 sensor weld-on bungs
- Black/Silver bezel
- Black/White faceplate
- Serial program cable
- Installation manual
Installation and Setup
Installation of the DLG-1 is relatively simple. Complete documentation is supplied, and the support pages, application notes and tuner resources can also speed you on your way to effective tuning.
på en v motor = dubbla lambda. Nu vet jag att v8an mår bra!
