Write a reviewPL-1: Pocket Logger, Innovate MTS Datalogger

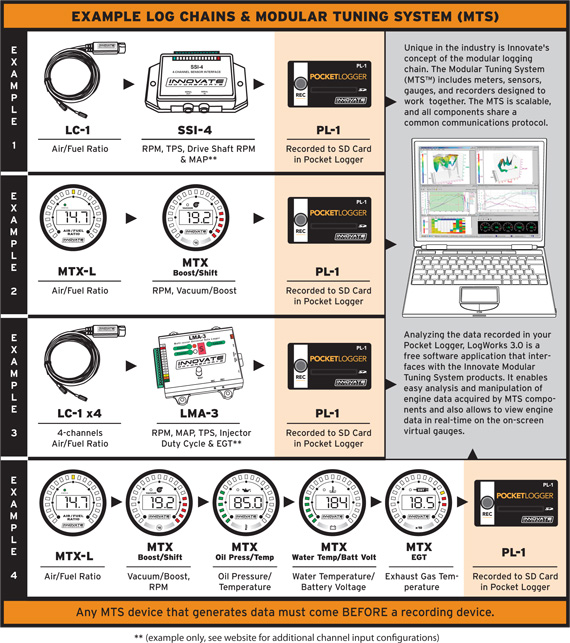

The PL-1 is the latest in Innovate Motorsports’ line-up of products to allow for easy data logging of your MTS (Modular Tuning System) compatible product. Whether you have an LC-1 & SSI-4, MTX gauges, or any other combination of Innovate Motorsports MTS devices, the PL-1 integrates seamlessly to record all the data from the connected devices.
Record up to 32-channels of Innovate MTS compatible devices
Sample rate of 12 times per second
Log directly to SD card (included) 2GB SD = 580 hours of recording!
Playback log data with powerful LogWorks software (available for download)
Positive lock connectors for all connections
Innovate MTS serial IN
Trigger recording on PL-1 and/or with "optional" remote push button (available here)
Specifications:
Power
Operating Voltage
12V to 18V DC
Input Current, Operating
200mA
Temperature
Operating
0°C to 70°C (32°F to 158°F)
Inputs
Serial IN
Innovate MTS Compatible
Recording
SD Memory Card
17 Minutes Per MB (1024 MB in 1 GB)
Card Format
FAT 16 & FAT 32
Recording Sample Rate
12 Sa/S
General
Dimensions
2.2" x 1" x 1.8"
Weight
0.10 lb
Complete kit includes:
PL-1, Pocket Logger
2GB SD Memory Card
SD Memory Card Reader, USB to PC
Power Cable, 12v
LogWorks 3.0 Software, available for download
MTS Patch Cable, Locking 4-pin to 4-pin, for newer devices like the MTX gauges
MTS Patch Cable, 2.5mm to 4-pin, needed for LC-1, SSI-4, TC-4, & LMA-3
P/N: 38750, PL-1: Pocket Logger Kit
----------------
