AN10 steel braided hose
SPD Performance Parts
Help others choose right. Be the first to write a review!Write a review

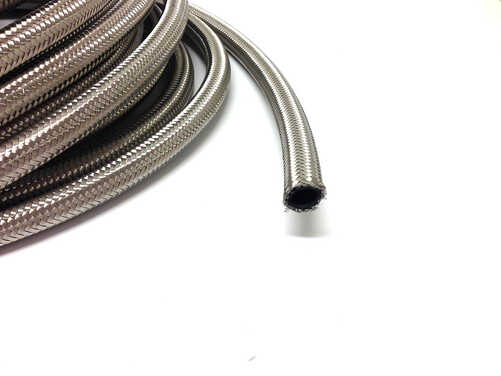

Steel braided hose with stainless steel braid.
Inner diameter: 14.29 mm.
If you use ethanol or methanol, we recommend our PTFE hose which is especially developed for these aggressive fuels.
Authorized for all fuels (gasoline, E85, methanol, diesel)
Authorized for oil, glycol.
Operating pressure of 69 bar
Bursting pressure at 345 bar
Operating temperature: -40 to 150 degrees
Price per meter.
Guides & Info
|inner diameter||14,2 mm|
|Inner diameter (inch)||0,56 / (9/16) "|
|Outer diameter||20,32 mm|
|Outer diameter (inch)||0,80 "|
|Max working pressure||1000 PSI|
|Burst pressure||5000 PSI|
|Minimum bend radius||102 mm|
|Minimum bend radius (inch)||4,0 "|
|Temperature range (°C)||-40 +150|
|Fits hose end||AN10|
